| Place of Origin: | China |
| 브랜드 이름: | Ziitek |
| 인증: | RoHS |
| Model Number: | TIR300G-A1 |
| Minimum Order Quantity: | 1000pcs |
|---|---|
| 가격: | 0.1-10USD/pcs |
| Packaging Details: | 24*13*12cm cartons |
| Delivery Time: | 3-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/month |
| Products Name: | Used Between Heat Sinks And External Casings High Quality Thermal Conductive Graphite Sheet | Hardness: | 85 Shore A |
|---|---|---|---|
| keywords: | Thermal Conductive Graphite Sheet | Feature: | Excellent thermal impedance |
| Thermal conductiivity: | 2.0W/m-K | Color: | Black |
| Density: | 1.4g/cc | Thickness: | 0.13mm |
| Application: | Used Between Heat Sinks And External Casings |

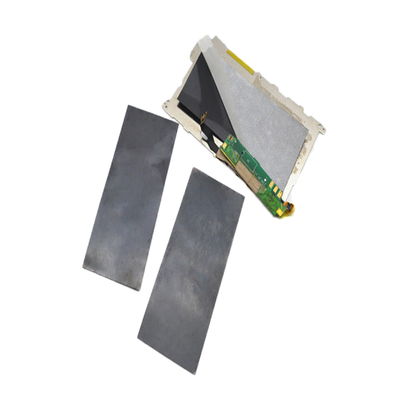

Used Between Heat Sinks And External Casings High Quality Thermal Conductive Graphite Sheet
Company profile
With professional R&D capabilities and many year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
Products introduction
TIR®300G-A1 Series is a composite themal pad with added graphite,which has excellent thermal conductivity to effectively solve the common problem of thermal interfaces. This material uses a fiberglass-reinforced structure to ensure that it does not lose structural integrity during application. lt is easy to apply to different surfaces and is convenient to install. lt is commonly used between transistors and heat sinks,and between large assembly parts for thermal interface management.
Feature
> Excellent thermal impedance
> Replaces traditional thermal grease
> High reliability
> Easy to apply to surfaces
Application
> Between transistors and heat sinks
> Between mechanical structures
> Between heat sinks and external casings
| Typical Properties of TIR®300G-A1 series | |||
| Product Name | TIR®304G-A1 | TIR®305G-A1 | Test Method |
| Colour | Black | Visual | |
| Reinforcement Carrier | Fiberglass | ***** | |
| Thickness range | 0.13mm/0.005inch | 0.15mm/0.006 inch | ASTM D374 |
| Hardness | 85 Shore 00 | ASTM D2240 | |
| Density | 1.4g/cc | ASTM D297 | |
| Volume Resistivity(ohm-cm) | 102 | ASTM D257 | |
| Continuous Use Temperature | -60℃~ 180℃ | Ziitek Test Method | |
| Thermal Conductivity(W/mK) | 2.0 | ASTM D5470 | |
| Thermal impedance(℃-in2/W )@30psi | 0.66 | 0.68 | ASTM D5470 |
| Thermal impedance(℃-in2/W)@50psi | 0.34 | 0.36 | ASTM D5470 |
| 180° Peel Strength | 1.0N/25mm | ASTM D3330 (Steel,Immediate) | |
Standard size:
Sheet: 305 mm*305 mm; Roll: 305 mm*75 m.
TIR300G series can be cut and supplied in various shapes and sizes.
For different thicknesses or sizes, please contact our company.
Packaging Details & Lead time
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
