| Place of Origin: | China |
| 브랜드 이름: | Ziitek |
| 인증: | UL & RoHS |
| Model Number: | TIF540BS |
| Minimum Order Quantity: | 1000pcs |
|---|---|
| 가격: | 0.1-10 USD/PCS |
| Packaging Details: | 24*13*12cm cartons |
| Delivery Time: | 3-5 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000000 pcs/month |
| Product ame: | Thermal Conductive Pad Thermal Insulation Silicone Pad Thermal Gap Pad For CPU/LED/PCB Silicone Thermal Pad GPU SSD Thermal Pad | Thickness: | 1.0mmT |
|---|---|---|---|
| Specific Gravity: | 3.0g/cc | Dielectric Breakdown Voltage: | >5500 VAC |
| Thermal conductivity: | 2.6W/m-K | Color: | Blue |
| Keywords: | Thermal Conductive Pad | Application: | CPU/LED/PCB/GPU/SSD |

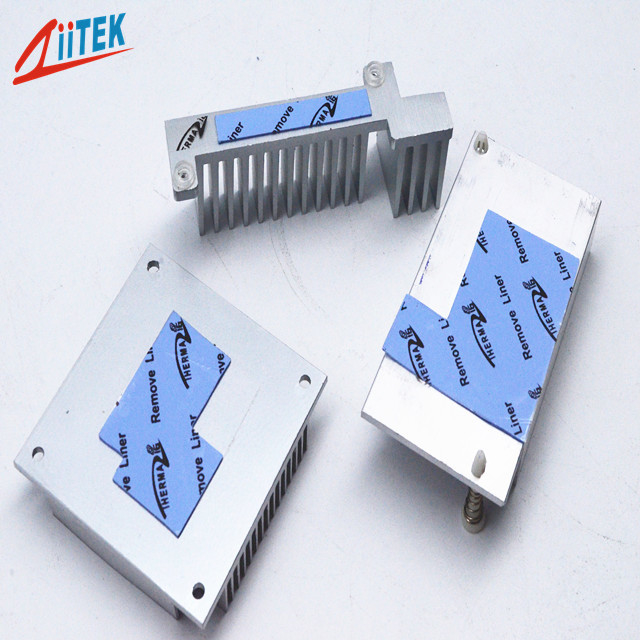

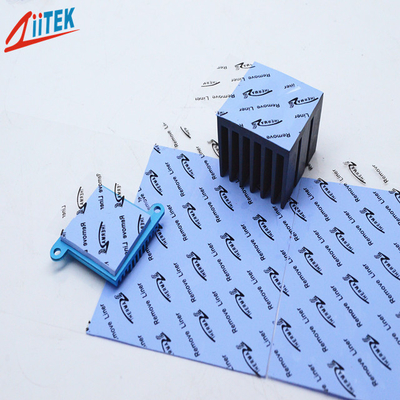

Thermal Conductive Pad Thermal Insulation Silicone Pad Thermal Gap Pad For CPU/LED/PCB Silicone Thermal Pad GPU SSD Thermal Pad
Company Profile
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
The TIF540BS Series is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.
Features
> Good thermal conductive: 2.6W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses
Applications
> CPU
> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics
> Set top boxes
> Audio and video components
> IT infrastructure
| Typical Properties of TIFTM540BS Series | ||
| Color | Blue | Visual |
| Construction | Ceramic filled silicone elastomer | ********** |
| Thermal Conductivity | 2.6W/mK | ASTM D5470 |
| Hardness | 13 Shore 00 | ASTM 2240 |
| Specific Gravity | 3.0 g/cc | ASTM D297 |
| Thickness range | 1.0mm | ASTM D374 |
| Dielectric Breakdown Voltage (T= 1mm above) | >5500 VAC | ASTM D149 |
| Dielectric Constant | 5.0MHz | ASTM D150 |
| Volume Resistivity | 2.0X1013 Ohm-meter | ASTM D257 |
| Continuous Use Temp | – 45To 200℃ | ********** |
| Outgassing (TML) | 0.45% | ASTM E595 |
| Flame Rating | 94-V0 | UL E331100 |
Product Specification
Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes: 8" x 16"(203mm x406mm)
Individual dieoutshapesand andcustomthicknesscanbesupplied.Peasecontactusforconfirming
TIF™ series Individual die cut shapes can be supplied.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge.
