| Place of Origin: | China |
| 브랜드 이름: | Ziitek |
| 인증: | UL & RoHS |
| Model Number: | TIF112-12-10S-K1 |
| Minimum Order Quantity: | 1000pcs |
|---|---|
| 가격: | 0.1-10 USD/PCS |
| Packaging Details: | 24*13*12cm cartons |
| Delivery Time: | 3-5 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000000 pcs/month |
| Products name: | Thermal Pads Pliable Durable Gray Electric Conductive Silicone Sheet For Medical Devices | 인증: | RoHS and UL recognized |
|---|---|---|---|
| Color: | Gray / Light amber | Keywords: | Thermal Pads |
| Thinkness range: | 0.012"(0.30mm) | Sample: | Sample Avaliable |
| Flam rating: | 94 V0 | Hardness: | 65±5 Shore 00 |
| Thermal Conductivity: | 1.2W/mK | Application: | Medical Devices Cooling |

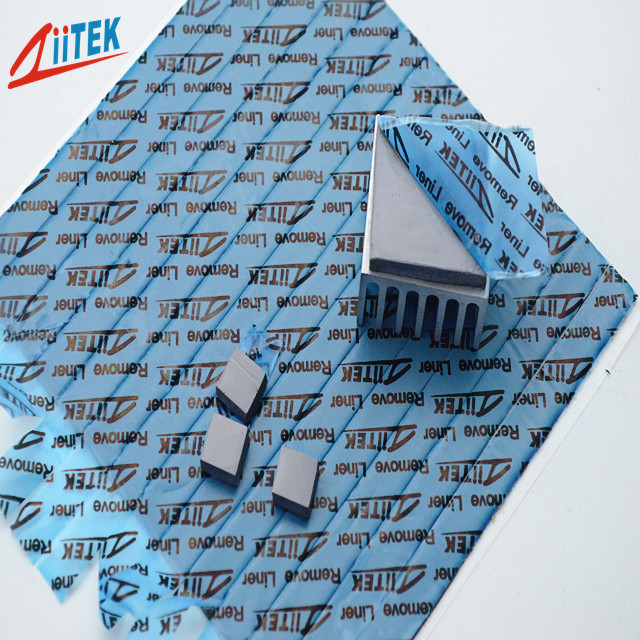

Thermal Pads Pliable Durable Gray Electric Conductive Silicone Sheet For Medical Devices
Company Profile
Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
Product description
TIF112-12-10S-K1 is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.
Features
> Good thermal conductive : 1.2W/mK
> Soft and Compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Available in varies thickness
> Broad range of hardnesses available
> Moldability for complex parts
> Outstanding thermal performance
Applications
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Display card
> Telecommunication hardware
> Audio and video components
> Routers
> Medical Devices
> Auditioning electronic products
> unmanned aerial vehicle(UAV)
| Typical Properties of TIF112-12-10S-K1 Series | ||
| Color | Gray / Light amber | Visual |
| Construction & Compostion | Ceramic filled silicone elastomer | ******* |
| Renforcement Carrier | Polyimide film | ******* |
| Specific Gravity | 2.2g/cc | ASTM D792 |
| Thickness range | 0.012"(0.30mm) | ASTM D374 |
| Hardness (thickness ≥1.0mm) | 60 ±5 Shore 00 | ASTM 2240 |
| Dielectric Breakdown Voltage | >5500 VAC | ASTM D412 |
| Operating Temp | -40 ~120℃ | ******* |
| Dielectric Constant | 4.5MHz | ASTM D150 |
| Volume Resistivity | 1.0X1012Ohm-meter | ASTM D257 |
| Fire rating | 94-V0 | equivalent UL |
| Thermal conductivity | 1.2W/mK | ASTM D5470 |
Product Specification
Product Thicknesses: 0.012"(0.30mm)
Product Sizes: 8" x 16"(203mm x406mm)

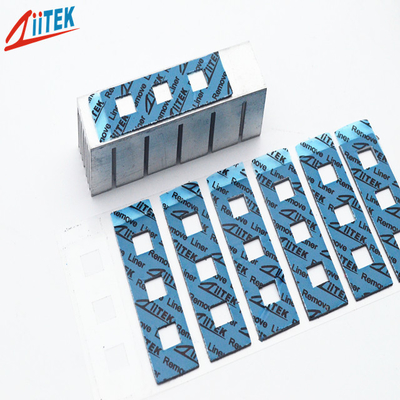

Individual die cut shapes and custom thickness can be supplied. Please contact us for confirming.
Safe disposal method does not require special protection.The storage condition is low temperature and dry,
away from open fire and away from direct sunlight. For detailed method, please refer to the product material safety data sheet.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge
Independent R&D team
Q: How do I place an order?
A:1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and message to us.
This message should include any questions you might have about the products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the process and send your message to us.
4. We will reply you as soon as possible with Email or online.
