| 원래 장소: | 중국 |
| 브랜드 이름: | Ziitek |
| 인증: | UL & RoHS |
| 모델 번호: | TIF800US 시리즈 |
| 최소 주문 수량: | 1000pcs |
|---|---|
| 가격: | 0.1-10 USD/PCS |
| 포장 세부 사항: | 24*13*12 상자 |
| 배달 시간: | 3-5 일 |
| 지불 조건: | t/t |
| 공급 능력: | 10000000 PCS/월 |
| 제품 이름: | 5.0W 고품질 공장 도매 맞춤형 실리콘 열 패드 열 갭 필러 절연 시트 LED CPU GPU MOS | 견본: | 샘플 무료 |
|---|---|---|---|
| 두께: | 0.020 "(0.500) ~ 0.200"(5.0mm) | 비중: | 3.4g/cc |
| 애플리케이션: | LED CPU GPU MOS 열전달 | 유전체 파괴 전압: | ≥5000 VAC |
| 색상: | 회색 | 키워드: | 열 위성 방송 중계기 패드 |
| 경도: | 20 버팀목 00 | 열전도율: | 5.0W/m-k |

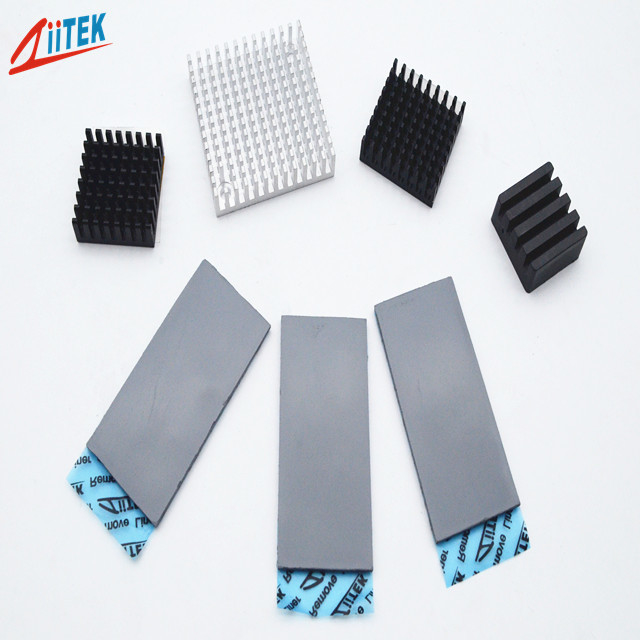

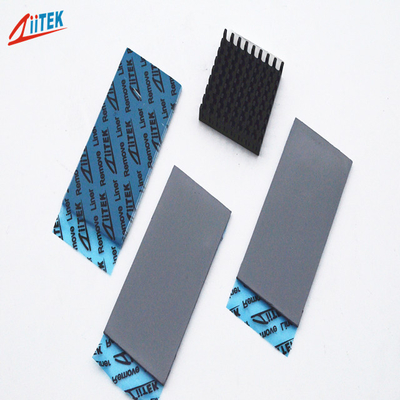

5.0W High Quality Factory Wholesale Customized Silicone Thermal Pad Thermal Gap Filler Insulation Sheet For LED CPU GPU MOS
Products description
The TIF®800US Series thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base.Their flexibility and elasticity make them suited to coat very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the heating elements or even the entire PCB, which effectively enhances the efficiency and life-time of the heat-generating electronic components.
Features
> Good thermal conductive: 5.0W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> RoHS compliant
> UL recognized
Applications
> LED TV / LED Lit Lamps
> Heat pipe thermal solutions
> Mass storage devices
>Automotive electronics
> Memory Modules
> routers
> LED Panel Light
> LED floor light
> Routers
> Medical Devices
> Auditioning electronic products
> unmanned aerial vehicle(UAV)
| Typical Properties of TIF®800US Series | ||
| Color | Gray | Visual |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** |
| Specific Gravity | 3.4g/cc | ASTM D297 |
| Thickness range | 0.020"(0.500)~0.200"(5.0mm) | ASTM D374 |
| Hardness | 20 Shore 00 | ASTM 2240 |
| Operating temp | -40 to 200℃ | ****** |
| Dielectric Breakdown Voltage | ≥5000 VAC | ASTM D149 |
| Dielectric Constant @1MHz | 4.5 | ASTM D150 |
| Volume Resistivity | ≥ 1.0X1012 Ohm-meter | ASTM D257 |
| Flame rating | 94 V0 | UL E331100 |
| Outgassing (TML) | 0.55% | ASTM E595 |
| Thermal conductivity | 5.0 W/m-K | ASTM D5470 |
| 5.0 W/m-K | ISO 22007-2 | |
Products specification
Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm) with increments of 0.01 inch(0.25mm).
Product Sizes: 8" x 16"(203mm x406mm)Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.
Company profile
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
Ziitek Culture
Quality :
Do it right the first time, total quality control
Effectiveness:
Work precisely and thoroughly for effectiveness
Service:
Quick response, On time delivery and Excellent service
Team work:
Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.
담당자: Dana Dai
전화 번호: +86 18153789196
