| 원래 장소: | 중국 |
| 브랜드 이름: | Ziitek |
| 인증: | UL & RoHS |
| 모델 번호: | TIF100-01U 시리즈 |
| 최소 주문 수량: | 1000pcs |
|---|---|
| 가격: | 0.1-10 USD/PCS |
| 포장 세부 사항: | 24*13*12cm 상자 |
| 배달 시간: | 3-5 일 |
| 지불 조건: | t/t |
| 공급 능력: | 10000000 PCS/월 |
| 제품 이름: | 의료 기기의 전기 분리 프리미엄 연질 열전도 1.5W/MK 실리콘 열 패드 | 열전도율: | 1.5W/mK |
|---|---|---|---|
| 색상: | 검은색 | 두께 범위: | 0.020"(0.5mm)~0.200"(5.0mm) |
| 유전체 파괴 전압: | > 5500 VAC | 키워드: | 실리콘 써멀 패드 |
| 유전 상수: | 3.5MHz | 화재 등급: | 94 V0 |
| 애플리케이션: | 의료 기기 |

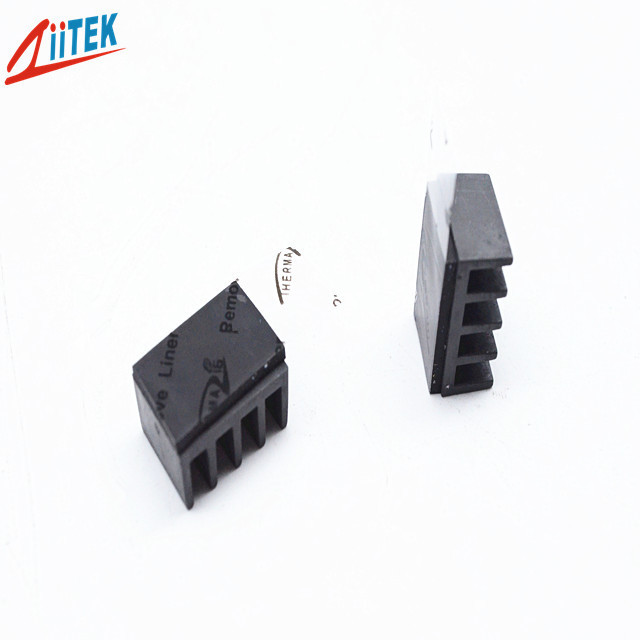

Easy Release Construction Premium Soft 1.5W/MK Silicone Thermal Pad For Medical Devices
Company Profile
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL

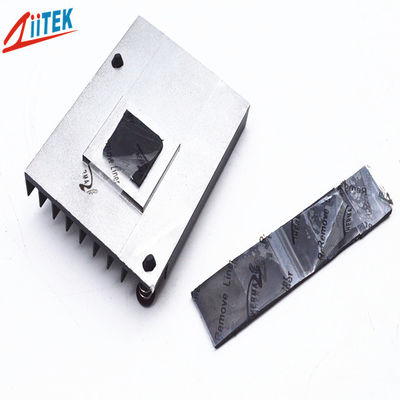

The TIF®100-01U thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base.Their flexibility and elasticity make them suited to coat very uneven surfaces.Heat can transmit to the metal housing or dissipation plate from the heating elements or even the entire PCB, which effecitly enhances the efficiency and life-time of the heat-generating electronic components.
Features
> Good thermal conductive: 1.5W/mK
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses
> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized
Applications
> LED TV / LED Lit Lamps
> Automotive engine control units
> SAD-DC Power Adapters
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> Micro heat pipe thermal solutions
> Memory Modules
> Routers
> Telecommunication hardware
> Mainboard/mother board
> CPU
> Display card
> Automotive electronics
> Set top boxes
> Audio and video components
> IT infrastructure
| Typical Properties of TIF®100-01U Series | ||
| Property | Value | Test method |
| Color | Black | Visual |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** |
| Thickness range | 0.020"(0.5mm)~0.200"(5.0mm) | ASTM D374 |
| Specific Gravity | 2.2 g/cc | ASTM D792 |
| Hardness | 27 Shore 00 | ASTM 2240 |
| Operating Temp | -45 ~ 200℃ | ****** |
| Dielectric Breakdown Voltage | ≥5500 VAC | ASTM D149 |
| Dielectric Constant @1MHz | 3.5 MHz | ASTM D150 |
| Volume Resistivity | ≥1.0X1012 Ohm-cm | ASTM D257 |
| Fire rating | 94 V0 | UL E331100 |
| Outgassing(TML) | 0.35% | ASTM E595 |
| Thermal conductivity | 1.5W/m-K | ASTM D5470 |
Product Thicknesses: 0.020"(0.5mm)~0.200"(5.0mm)
Product Sizes: 8" x 16"(203mm x406mm)
Individual die cut shapes and custom thickness can be supplied. Please contact us for confirming
Safe disposal method does not require special protection.The storage condition is low temperature anddry, away from open fire and away from direct sunlight. For detailed method, please refer to the product material safety data sheet.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
