| 원래 장소: | 중국 |
| 브랜드 이름: | Ziitek |
| 인증: | UL & RoHS |
| 모델 번호: | TIF100-01E 시리즈 |
| 최소 주문 수량: | 1000pcs |
|---|---|
| 가격: | 0.1-10 USD/PCS |
| 포장 세부 사항: | 24*13*12cm 상자 |
| 배달 시간: | 3-5 일 |
| 지불 조건: | t/t |
| 공급 능력: | 10000000 PCS/월 |
| 제품 이름: | OEM 자동차 엔진 제어 장치를위한 열전 전도 패드 열 전도성 실리콘 패드 | 애플리케이션: | 자동차 엔진 제어 유닛 |
|---|---|---|---|
| 두께 범위: | 0.020 "~ 0.200"(0.5mm ~ 5.0mm) | 유전 상수: | 4.7 마하즈 |
| 유전체 파괴 전압: | > 5500 VAC | 키워드: | 실리콘 써멀 패드 |
| 화재 등급: | 94 V0 | 열전도율: | 1.5W/mK |
| 색상: | 검은색 |

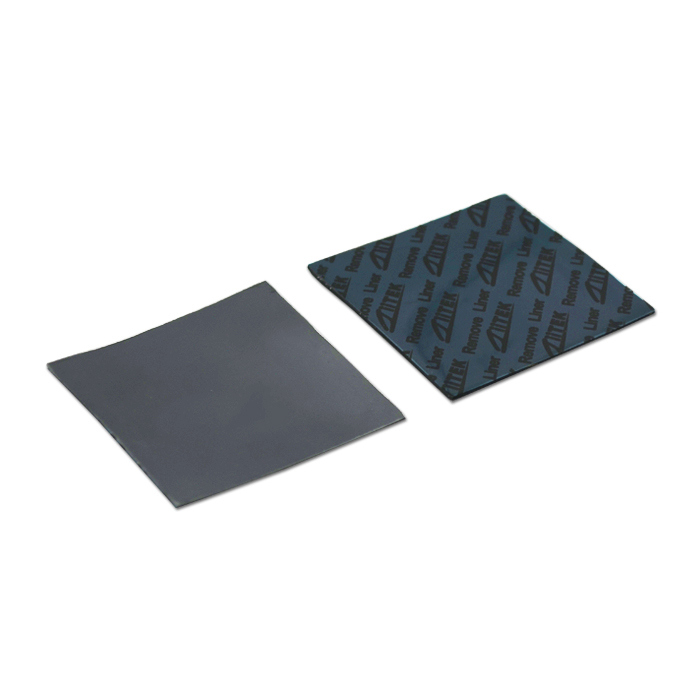

OEM Customized Size Thermal Conductive Pad Thermal Conductive Silicon Pad For Automotive Engine Control Units
Company Profile
With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.
The TIF®100-01E Series is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.
Features
> Good thermal conductive: 1.5W/mK
> Available in varies thickness
> UL recognized
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
Applications
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU
> Display card
> Mainboard/mother board
> Notebook
> Power supply

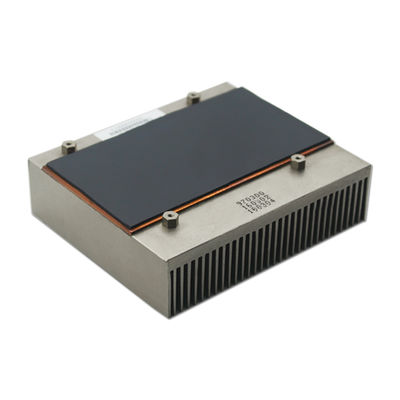

> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics
> Set top boxes
| Typical Properties of TIF®100-01E Series | ||
| Property | Value | Test method |
| Color | Black | ****** |
| Construction &Compostion | Ceramic filled silicone elastomer | ****** |
| Specific Gravity | 2.3 g/cc | ASTM D297 |
| Hardness | 35 Shore 00 | ASTM 2240 |
| Thickness range | 0.020"~0.200"(0.5mm~5.0mm) | ASTM D374 |
| Continuos Use Temp | -45 to 200℃ | ****** |
| Dielectric Breakdown Voltage | >5500 VAC | ASTM D149 |
| Dielectric Constant | 4.7 MHz | ASTM D150 |
| Volume Resistivity | 1.0X1012 Ohm-meter | ASTM D257 |
| Flame rating | 94 V0 | UL E331100 |
| Outgassing (TML) | 0.35% | ASTM E595 |
| Thermal conductivity | 1.5 W/m-K | ASTM D5470 |
Product Specification
Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes:8" x 16"(203mm x406mm)
Individual die cut shapes and custom thickness can be supplied, Please contact us for comfirming.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Independent R&D team
Q: How do I place an order?
A:1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and message to us.
This message should include any questions you might have about the products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the process and send your message to us.
4. We will reply you as soon as possible with Email or online.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge.
