| 원래 장소: | 중국 |
| 브랜드 이름: | Ziitek |
| 인증: | UL & RoHS |
| 모델 번호: | TIF500-50-11ES 시리즈 |
| 최소 주문 수량: | 1000pcs |
|---|---|
| 가격: | 0.1-10 USD/PCS |
| 포장 세부 사항: | 24*13*12cm 상자 |
| 배달 시간: | 3-5 일 |
| 지불 조건: | t/t |
| 공급 능력: | 10000000 PCS/월 |
| 제품 이름: | LTD 열 패드 5.0W 열 전도성 패드 CPU용 맞춤형 실리콘 단열 시트 열 패드 | 두께 범위: | 0.04인치~0.20인치/(1.0mm)~5.0mm) |
|---|---|---|---|
| 열전도율: | 5.0W/m-k | 견본: | 샘플 무료 |
| 유전체 파괴 전압: | > 5500 VAC | 키워드: | LED 열 패드 |
| 화재 등급: | 94 V0 | 색상: | 회색 |
| 유전 상수: | 3.8MHz | 적용: | LED CPU 열 방출 |

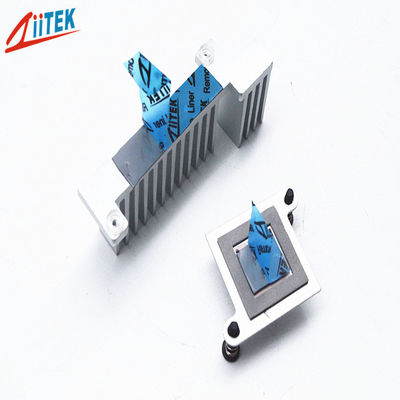

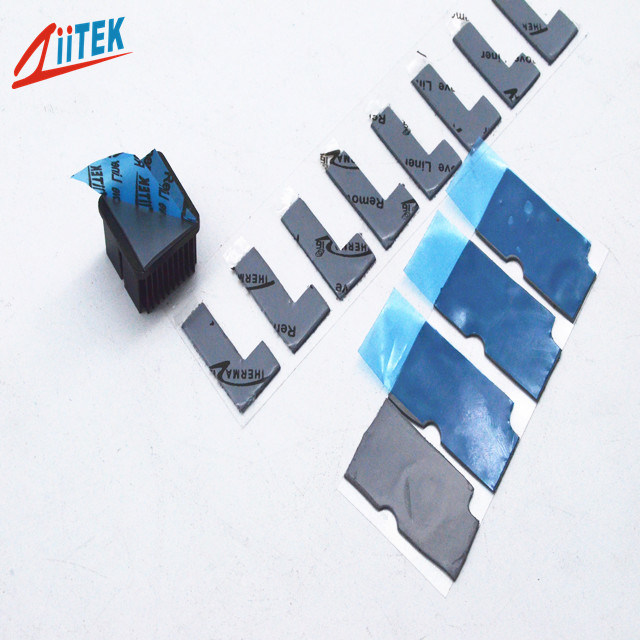

LTD Thermal Pad 5.0W Thermal Conductive Pad Customized Silicon Thermal Insulation Sheet Thermal Pads For CPU
Company Profile
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
Ziitek TIF®500-50-11ES is a thermal pad specifically designed to address the most demanding thermal challenges and highly sensitive mechanical stress environments. Combining exceptional thermal conductivity with near-fluid softness, it ensures perfect filling of contact interfaces even under ultra-low installation pressure, completely eliminating air thermal resistance. This delivers an outstanding thermal management solution and physical protection for the most precise and high-heat-flux-density electronic components.
Features
> Good thermal conductive: 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses
> Broad range of hardnesses available
Applications
> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics
> Set top boxes
> Audio and video components
> IT infrastructure
> GPS navigation and other portable devices
> CD-Rom, DVD-Rom cooling
> LED Power Supply
| Typical Properties of TIF®500-50-11ES Series | ||||
| Property | Value | Test method | ||
| Color | Gray | Visual | ||
| Construction &Compostion | Ceramic filled silicone elastomer | ****** | ||
| Thickness range(inch/mm) |
0.02"~0.03"/ (0.50mm)~(0.75mm) |
0.04"~0.20"/ (1.0mm)~(5.0mm) |
ASTM D374 | |
| Density | 3.3g/cm³ | ASTM D792 | ||
| Hardness | 10 Shore 00 | ASTM 2240 | ||
| Continuos Use Temp | -45 to 200℃ | ****** | ||
| Dielectric Breakdown Voltage | > 5500 VAC | ASTM D149 | ||
| Dielectric Constant | 3.8 MHz | ASTM D150 | ||
| Volume Resistivity | ＞1.0 X1012 Ohm-meter | ASTM D257 | ||
| Flame rating | 94 V0 | UL E331100 | ||
| Thermal conductivity | 5.0 W/m-K | ASTM D5470 | ||
Product Specification
Standard Thickness: 0.02"(0.50 mm)~0.20” (5.00 mm) with increments of 0.01 inch (0.25 mm).
Standard Size: 16" ×16" (406 mm×406 mm).
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIFseriesis available in custom shapes and various forms.For other thicknessesormore
information, please contact us.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Why Choose us ?
1.Our value message is'' Do it right the First time, total quality control''.
2.Our core competencies is thermal conductive interface materials.
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract.
5.Free sample offer.
6.Quality assurance contract.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How to find a right thermal conductivity for my applications
A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.
Q: Do you accept custom orders ?
A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .
