| 원래 장소: | 중국 |
| 브랜드 이름: | Ziitek |
| 인증: | UL & RoHS |
| 모델 번호: | TIF100-6045-50 |
| 최소 주문 수량: | 1000pcs |
|---|---|
| 가격: | 0.1-10 USD/PCS |
| 포장 세부 사항: | 24*23*12cm 칸톤 |
| 배달 시간: | 3-5 영업일 |
| 지불 조건: | 티/티 |
| 공급 능력: | 10000000 PCS/월 |
| 제품 이름: | 0.25~0.5 두께 실리콘 열 전도성 패드 유리 섬유는 컴퓨터 CPU/GPU 냉각을 위한 단열 시트를 강화합니다. | 두께 범위: | 0.25-0.50mmT |
|---|---|---|---|
| 색상: | 분홍색 | 키워드: | 열전도성 패드 |
| 유전 상수: | 3.38MHz | 항복 전압(V/mm)): | ≥5500 |
| 화재 등급: | 94 V0 | 열전도율: | 6.0W/m-K |
| 애플리케이션: | 컴퓨터 CPU/GPU 냉각 |

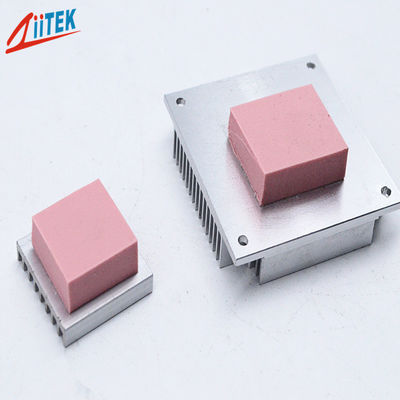

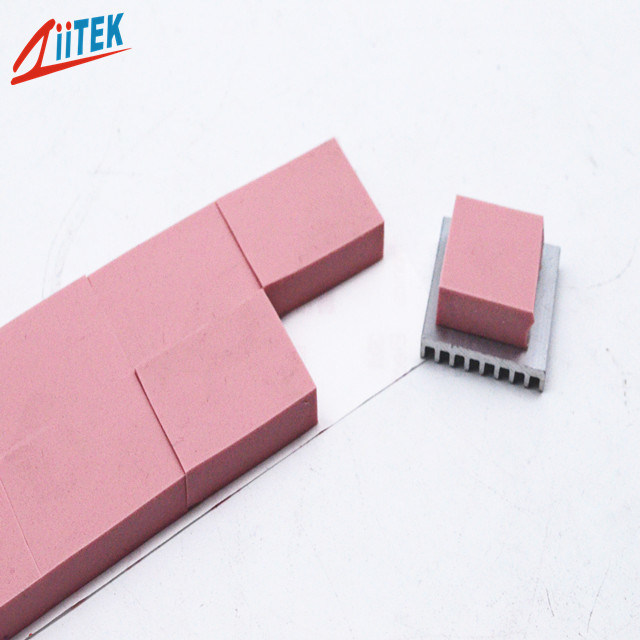

0.25~0.5 Thickness Silicone Thermal Conductive Pad Fiberglass Reinforce Thermal Insulation Sheet For Computer CPU/GPU Cooling
Company Profile
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
TIF®100 6045-50 is a well-balanced, general-purpose thermal conductive pad. It offers excellent thermal conductivity and moderate hardness. This balanced design ensures both superior surface conformability and exceptional ease of handling, providing effective thermal transfer paths and fundamental physicalprotection for a wide range of electronic components. It is the ideal solution for medium to high-power heat dissipation needs, achieving the optimal balance between cost and performance.
Features:
> Good thermal conductivity: 6.0W/mK
> Good flexibility and fillability
> Self-adhesive without the need for
> additional surface adhesives
> Good insulation performance
Applications
> Power tools
> Network communication products
> Electric vehicle batteries
> Computer CPU/GPU Cooling
> New energy vehicle power systems
| Typical Properties of TIF®100 6045-50 Series | |||
| Property | Value | Test method | |
| Color | Pink | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 3.38 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.010~0.020(0.25~0.5) | 0.030~0.200 (0.75~5.0) | ASTM D374 |
| Hardness | 70 Shore 00 | 45 Shore 00 | ASTM 2240 |
| Continuos Use Temp | -40 to 200℃ | *** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant | 8.4 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1014 Ohm-meter | ASTM D257 | |
| Fire rating | V-0 | UL 94 (E331100) | |
Product Specifications
Standard Thickness: 0.010"(0.25 mm)-0.200" (5.00 mm)
with increments of 0.010 inch (0.25 mm).
Standard Size: 16"×16" (406 mm ×406 mm)
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF® series is available in custom shapes and various forms.For other thicknesses or more information, please contact us.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Independent R&D team
Q: How do I place an order?
A:1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and message to us.
This message should include any questions you might have about the products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the process and send your message to us.
4. We will reply you as soon as possible with Email or online.
Our services
Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries in English of course.
Standard Export Carton Or Marked With Customer's Information Or Customized.
Provide free samples
After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory solution.
