| 원래 장소: | 중국 |
| 브랜드 이름: | Ziitek |
| 인증: | RoHS |
| 모델 번호: | TIG780-50HP |
| 최소 주문 수량: | 5kg |
|---|---|
| 가격: | USD 1-100/KG |
| 포장 세부 사항: | 1 킬로그램 /가 할 수 있습니다 |
| 배달 시간: | 3-5 영업일 |
| 지불 조건: | TT |
| 공급 능력: | 10000KG/Month |
| 이름: | 전자 부품 Al 서버를 위한 좋은 열 전도성 열 그리스 열 페이스트 | 애플리케이션: | 전자 부품 Al 서버 |
|---|---|---|---|
| 특정한: | 2.30g/cm3 | 열전도율: | 5.0W/mK |
| 재료: | 금속 산화물/실리콘 오일 | 색상: | 회색 |
| 연속적인 사용 임시: | -40 200 ~ 200 ℃ | 키워드: | 열유 |

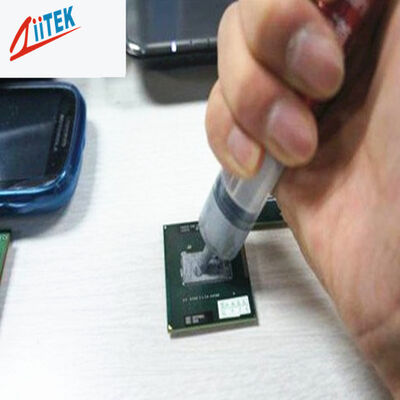

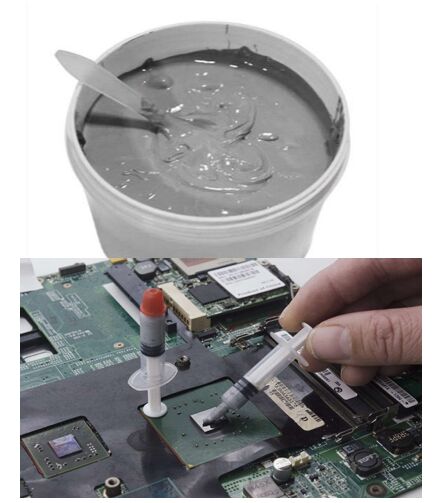

Good Thermal Conductivity Thermal Grease Thermal Paste For Electronic Components Al Server
TIG®780-50HP Series is an environmentally friendly silicone based thermal paste designed to efficiently solve overheating problems in electronic devices and improve long-term reliability, TIG®780-50HP is a paste like material that can fully wet the surfaces of electronic components and heat sinks. It acts to fill the gaps between electronic components and heat sinks, eliminate air, and significantly improve heat dissipation eficiency (better than traditional thermal pads or ordinary silicone grease), thereby forming an extremely low thermal resistance interface and achieving excellent thermal conductivity efficiency.
Features
> High thermal conductivity
> Excellent low thermal resistance
> Good electrical insulation
> Excellent long-term stability
> Non toxic, environmentally friendly,and safe, meeting RoHS requirements
Applications lnclude
> Al server
> Industrial equipment
> Medical electronic devices
> LED TV,LED lighting fixtures
> Automotive Electronics (New Energy and Intelligence)
> High end consumer electronics and portable devices
| Typical Properties of TIG®780-50HP Series | ||
| Property | Value | Test Method |
| Color | Gray | Visual |
| Construction &Compostion | Metal oxide / Silicone oil | Ziitek Test Method |
| Density | 2.30 g/cm³ | ASTM D792 |
| Thermal Conductivity | 5.0W/mK | ASTM D5470 |
| Bond line Thickness (mm) | 0.008 | ASTM D374 |
| Thermal Impedance (℃·in²/W) @30 psi | 0.015 | ASTM D5470 |
| Thermal Impedance (℃·in²/W) @50 psi | 0.012 | ASTM D5470 |
| Recommended Operating Temp | -40℃ to 200℃ | ***** |
| Viscosity(mPa.s) | 200000 | GB/T 10247 |
Packaging Specifications
Packaging specifications: 0.5kg,1kg,2kg;
If you have any other specification requirements, please contact our company.
Independent R&D team
Q: How do I place an order?
A:1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and message to us.
This message should include any questions you might have about the products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the process and send your message to us.
4. We will reply you as soon as possible with Email or online.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How do I request customized samples?
A: To request samples, you can leave us message on website, or just contact us by send email or call us.
Q: What's the thermal conductivity test method given on the data sheet ?
A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.
