| 원래 장소: | 중국 |
| 브랜드 이름: | Ziitek |
| 인증: | UL & RoHS |
| 모델 번호: | TIF100-15-11S-D |
| 최소 주문 수량: | 1000개 |
|---|---|
| 가격: | 0.1-10 USD/PCS |
| 포장 세부 사항: | 24*13*12cm 상자 |
| 배달 시간: | 3-5 영업일 |
| 지불 조건: | 티/티 |
| 공급 능력: | 10000000 PCS/월 |
| 제품명: | 고속 네트워크 및 AI 서버용 저밀도 열 패드 | 두께 범위: | 0.250~5.0mm(0.010~0.20인치) |
|---|---|---|---|
| 색상: | 어두운 회색 | 경도: | 65 버팀목 00 |
| 밀도: | 2.0g/cm³ | 키워드: | 열 패드 |
| 애플리케이션: | 고속 네트워크 및 AI 서버 | 열전도율: | 1.5W/mK |

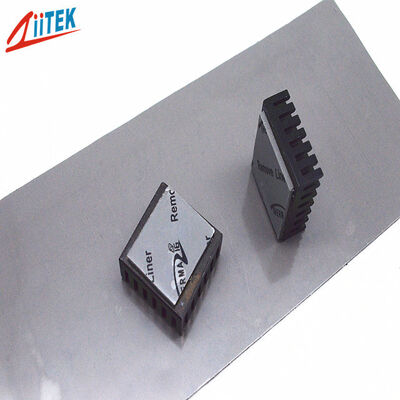

Low Density Thermal Pad For High Speed Networks And AI Servers
Products Description
TIS®100-15-11S-D Series is an innovative low-density thermal pad that offers good thermal conductivity and moderate hardness. This balanced design provides both excellent surface conformity and outstanding ease of use, delivering effective heat transfer and basicphysical protection for a wide range of electronic components while achieving lightweight performance.
Features:
> Low density
> Good thermal conductivity
> Good softness and fillability
> Self-adhesive without the need for additional surface adhesives
> Good insulation performance

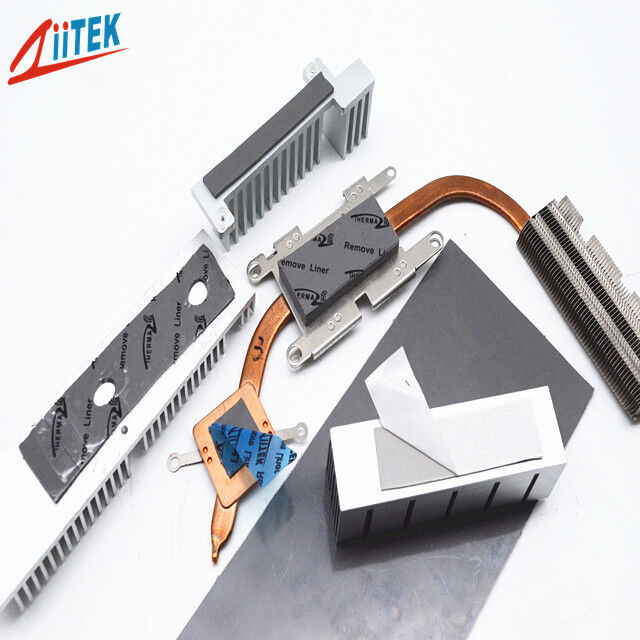

Applications:
> Home appliance industry
> Power module
> Wearable device
> Solar photovoltaic panel
> LED lighting fixtures
> High Speed Networks And AI Servers
| Typical Properties of TIF®100-15-11S-D Series | |||
| Property | Value | Test method | |
| Color | Dark Gray | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 2.0 | ASTM D792 | |
| Thickness Range(inch/mm) |
0.010~0.020 (0.25~0.5) |
0.030~0.200 (0.75~5.0) |
ASTM D374 |
| Hardness | 65 Shore 00 | 45 Shore 00 | ASTM 2240 |
| Continuos Use Temp | -40 to 200℃ | *** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant | 5.2 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Thermal Conductivity(W/m.K) | 1.5 | ASTM D5470 | |
| Fire rating | V-0 | UL 94 (E331100) | |
