| 원래 장소: | 중국 |
| 브랜드 이름: | Ziitek |
| 인증: | RoHS |
| 모델 번호: | TIG680-28AB |
| 최소 주문 수량: | 10KG |
|---|---|
| 가격: | 1-100USD/KG |
| 포장 세부 사항: | 1 킬로그램 /가 할 수 있습니다 |
| 배달 시간: | 3-8 근무일 |
| 지불 조건: | 티/티 |
| 공급 능력: | 10000KG/Month |
| 제품명: | 산업 통제를 위한 높은 열 전도성 2.8W 2성분 포팅 실리콘 접착제 | 밀도: | 2.95 |
|---|---|---|---|
| 재료: | 실리콘 접착제 | 색상: | 회색 |
| 경도: | 25 (버팀목 A) | 애플리케이션: | 산업 제어, 변압기, 코일 |
| 열전도율: | 2.8W/mK | 예어: | 포팅 화합물 |

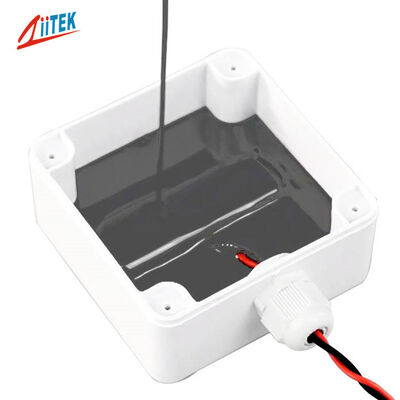

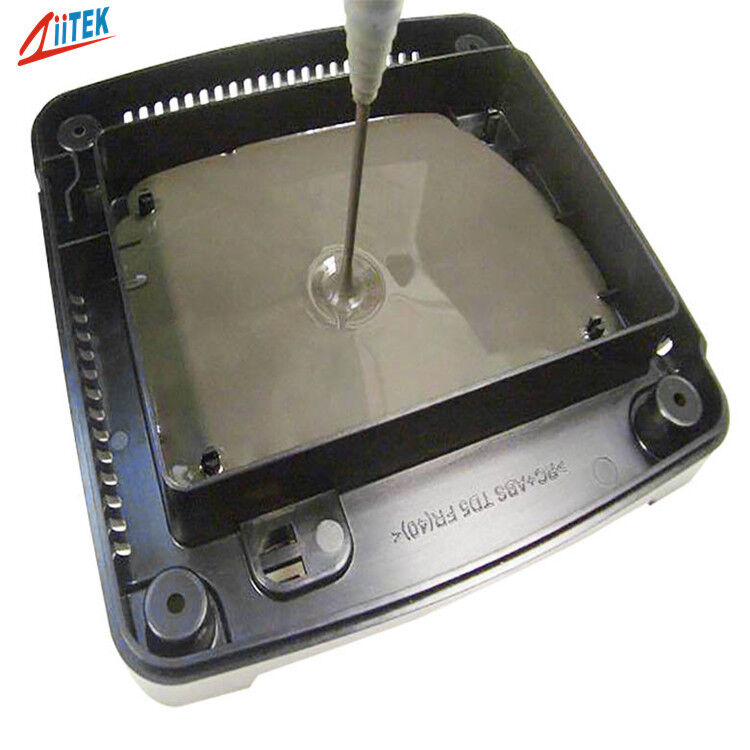

High Thermal Conductive 2.8W Two Component Potting Silicone Adhesive For Industrial Control
TIG®680-28AB Series is a two-component high thermal conductivity silicone sealant with room temperature curing, long working time, and flame retardant properties. This product is particularly suitable for sealing capacitors and small electronic devices. Its excellent flexibility properties enable it to provide excellent cushioning protection for coating materials. The low viscosity characteristic enables the thermal conductive sealant to cover the surface more comprehensively, greatly improving the heat transfer efficiency of the heating element or the entire printed circuit board to the metal shell or heat dissipation plate,thereby improving the performance and service life of electronic components.
Feature
> Good thermal conductivity: 2.8W/mK
> Good insulation performance
> Good elasticity
> Lower shrinkage
> Low viscosity,easy gas emissions
> Good solvent resistance and waterproof performance
> Longer working hours
> Excellent high and low temperature resistance
> No odor release during the curing process
| Typical Properties of TIG®680-28AB Series | |||
| Material Properties (Before Curing) | |||
| Property | Numerical | Test Method | |
| Color/Part A | White | Visual | |
| Color/Part B | Gray | Visual | |
| Part A Viscosity (mPa.s) | 7000 | GB/T 10247 | |
| Part B Viscosity (mPa.s) | 8000 | GB/T 10247 | |
| Mix Ratio | 1:1 | Ziitek Test Method | |
| Shelf life | 6 months(Unopened) | Ziitek Test Method | |
| Cure Schedule | |||
| Pot Life @25℃ | 30~45 mins | Ziitek Test Method | |
| Cure @70℃ | 20~30 mins | Ziitek Test Method | |
| Cure Material Properties | |||
| Color | Gray | Visual | |
| Hardness (Shore A) | 25 | ASTM D2240 | |
| Density (g/cm³) | 2.95 | ASTM D792 | |
| Recommended Operating temperature (℃) | -45 ~200 | ***** | |
| Flame Rating | V-0 | UL 94 | |
| Thermal Conductivity (W/mK) | 2.8 | ASTM D5470 | |
| Breakdown Voltage (V/mm) | ≥8000 | ASTM D149 | |
| Dielectric Constant @1MHz | 6.0~8.0 | ASTM D150 | |
| Volume Resistivity (Ohm·cm) | 1.0x1013 | ASTM D257 | |
