| 원래 장소: | 중국 |
| 브랜드 이름: | Ziitek |
| 인증: | UL & RoHS |
| 모델 번호: | TIF500-65-11ES |
| 최소 주문 수량: | 1000개 |
|---|---|
| 가격: | 0.1-10 USD/PCS |
| 포장 세부 사항: | 24*13*12cm 판지 |
| 배달 시간: | 3-5 영업일 |
| 지불 조건: | 티/티 |
| 공급 능력: | 10000000 PCS/월 |
| 제품명: | 네트워크 통신 제품용 6.5W/MK 실리콘 기반 열 관리 열 GAP 패드 소재 | 견본: | 샘플 무료 |
|---|---|---|---|
| 항복전압(V/mm): | ≥5500 | 화재 등급: | 94 V0 |
| 색상: | 다크 그레이 | 열전도율: | 6.5W/MK |
| 키워드: | 열 GAP 패드 재료 | 유전 상수 @ 1MHz: | 7.0MHz |
| 두께 범위: | 0.020"~0.200"(0.50mm~5.0mm) | 애플리케이션: | 네트워크 통신 제품 냉각 |
6.5W/MK Silicone-Based Thermal Management Thermal GAP PAD Materials For Network Communication Products
Company Profile

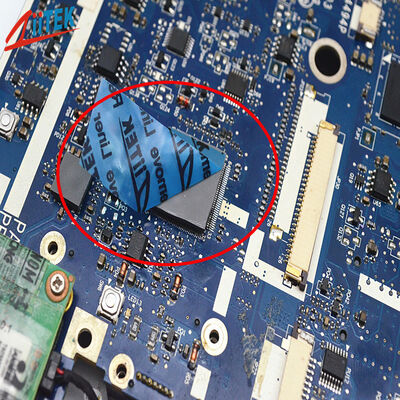

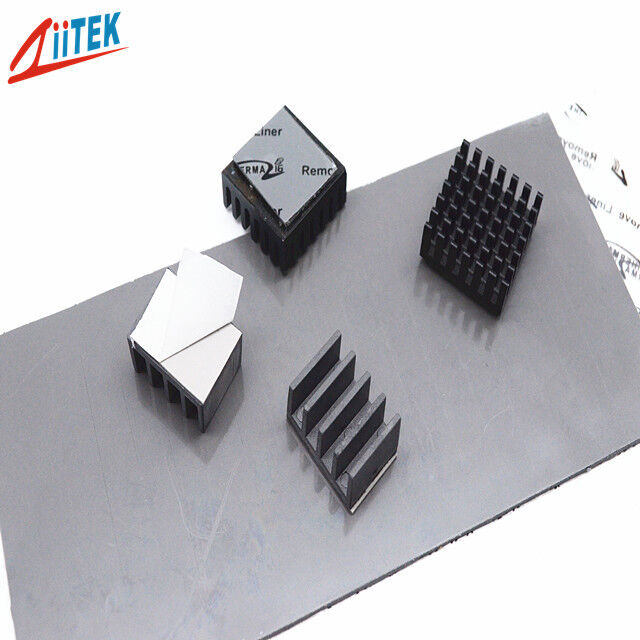

A silicone thermal pad is a type of thermal interface material (TIM) which is highly conductive and comprises of conformable materials which are used to provide a heat path between heat sinks and electronic devices where uneven surface topography, air gaps and texture preclude good thermal transfer. Ziitek supply a wide range of silicone thermal pads with varying properties to suit every application.
The TIF®500-65-11ES Series is a thermal pad specifically designed to tackle the high level cooling challenges and environments sensitive to extreme mechanical stress. It combines higt thermal conductivity with a near-fluid ultimate softness, ensuring perfect filling of the contact interface even under ultra-low mounting pressure, completely eliminating air thermal resistance,and providing superior thermal solutions and physical protection for the most precise and higt heat flux electronic components.
Features
> High thermal conductivity
> Extremely soft,low compression stress effectively protects sensitive components
> Self-adhesive without the need for additional surface adhesives
> Good insulation performance
Applications
> Computer / communication equipment.
> Laptop / tablet / PC server.
> New energy power battery / vehicle equipment.
> Switching power supply / UPS.
> Video / security equipment.
> Any heating element and radiator.
> Routers
> Medical Devices
> Auditioning electronic products
> Unmanned aerial vehicle(UAV)
> Photovoltaic
> Signal communication
> New energy vehicle
| Typical Properties of TIF®500-65-11ES Series | |||
| Property | Value | Test method | |
| Color | Dark Gray | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 3.4 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.020~0.030 | 0.040~0.200 | ASTM D374 |
| (0.50~0.75) | (1.00~5.00) | ||
| Hardness | 20 Shore 00 | 10 Shore 00 | ASTM 2240 |
| Continuos Use Temp | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥ 5500 | ASTM D149 | |
| Dielectric Constant | 7.0 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Thermal Conductivity (W/m-K) | 6.5 | ASTM D5470 | |
| 6.5 | ISO22007 | ||
| Fire rating | V-0 | UL 94 (E331100) | |
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Ziitek Culture
Quality :
Do it right the first time, total quality control
Effectiveness:
Work precisely and thoroughly for effectiveness
Service:
Quick response, On time delivery and Excellent service
Team work:
Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge.
