| 원래 장소: | 중국 |
| 브랜드 이름: | Ziitek |
| 인증: | UL |
| 모델 번호: | TIF100-20-02S |
| 문서: | TIF100-20-02S_Data Sheet.pdf |
| 최소 주문 수량: | 1000 PC |
|---|---|
| 가격: | 0.1-10 USD/PCS |
| 포장 세부 사항: | 24*13*12cm 판지 |
| 배달 시간: | 3-8 근무일 |
| 지불 조건: | 티/티 |
| 공급 능력: | 100000pcs/월 |

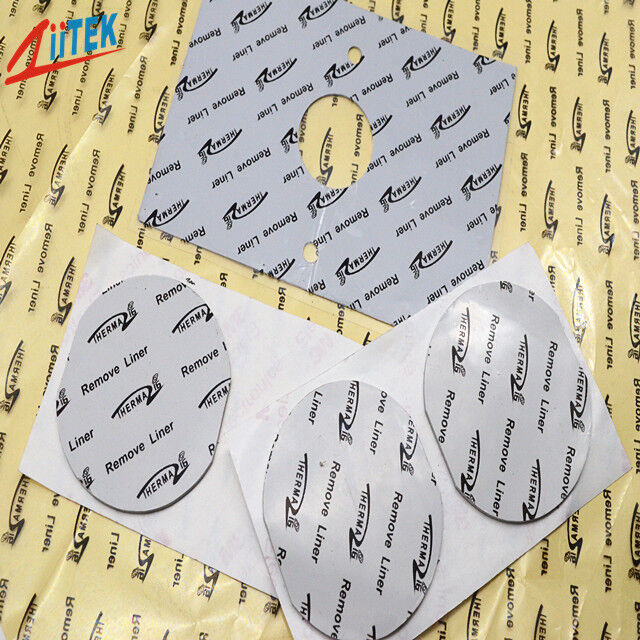

| 제품명: | 전자 냉각에 사용하기 위한 자연적인 점착성을 지닌 열 전도성 패드 2.0W/mK 열 전도성 재료 | 경도: | 65/45해안 00 |
|---|---|---|---|
| 키워드: | 열전도성 패드 | 색상: | 회색 백색 |
| 열전도율: | 2.0W/mk | 애플리케이션: | 전자 냉각에 적용 |
| 건설: | 세라믹 충전 실리콘 엘라스토머 | 두께: | 0.010~0.200"(0.25~5.0mm) |
| 견본: | 무료 |

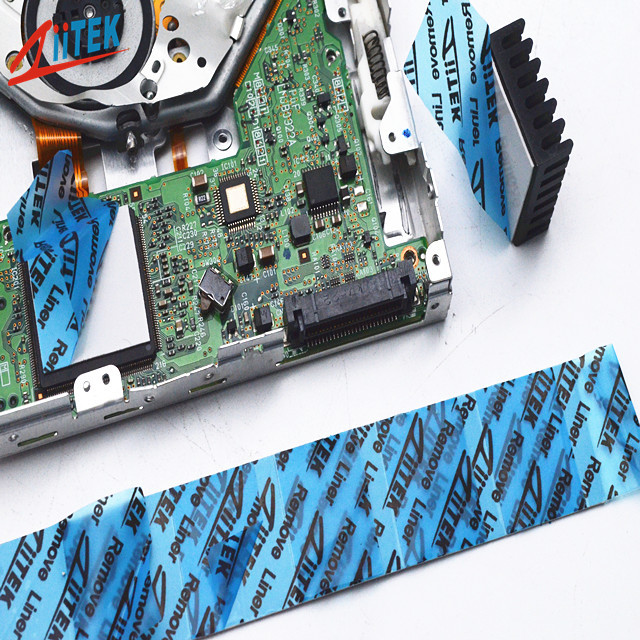

TIF®100-20-02S Series is a well-balanced, general-purpose thermal pad. It offers good thermal conductivity and moderate hardness. This balanced design provides both excellent surface conformity and superior ease of use, making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components.
| Property | Value | Test Method |
|---|---|---|
| Color | Gray white | Visual |
| Construction | Ceramic filled silicone elastomer | ****** |
| Density (g/cm³) | 2.65 | ASTM D792 |
| Thickness Range (inch/mm) | 0.010~0.020 (0.25~0.50) 0.030~0.200 (0.75~5.00) |
ASTM D374 |
| Hardness (Shore 00) | 65 | 45 | ASTM 2240 |
| Recommended Operating Temperature (℃) | -40 to 200℃ | *** |
| Breakdown Voltage (V/mm) | ≥5500 | ASTM D149 |
| Dielectric Constant @1MHz | 4.7 | ASTM D150 |
| Volume Resistivity | ＞1.0×10¹² Ohm-meter | ASTM D257 |
| Thermal Conductivity (W/m-K) | 2.0 | ASTM D5470 ISO22007 |
| Fire rating | V-0 | UL 94 (E331100) |
Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"×16" (406 mm×406 mm)
Component Codes:
Reinforcement Fabric: FG (Fiberglass)
Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening)
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive)
The TIF® series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.
