| 원래 장소: | 중국 |
| 브랜드 이름: | Ziitek |
| 인증: | UL |
| 모델 번호: | TIF100-20-02U |
| 문서: | TIF100-20-02U_Data Sheet.pdf |
| 최소 주문 수량: | 1000 PC |
|---|---|
| 가격: | 0.1-10 USD/PCS |
| 포장 세부 사항: | 24*13*12cm 판지 |
| 배달 시간: | 3-8 근무일 |
| 지불 조건: | 티/티 |
| 공급 능력: | 100000pcs/월 |
| 제품명: | AI 프로세서 및 서버 애플리케이션의 열 방출을 위한 높은 열 전도성 실리콘 열 패드 2.0W/mK | 경도: | 65/27 쇼어 00 |
|---|---|---|---|
| 키워드: | 실리콘 열 패드 | 색상: | 회색 백색 |
| 열전도율: | 2.0W/mk | 애플리케이션: | AI 프로세서 및 서버 애플리케이션의 열 방출용 |
| 건설: | 세라믹 충전 실리콘 엘라스토머 | 두께: | 0.010~0.200"(0.25~5.0mm) |
| 견본: | 무료 |

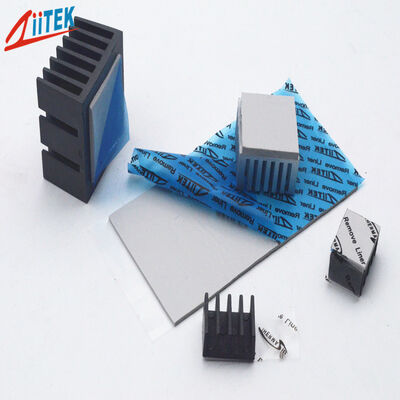

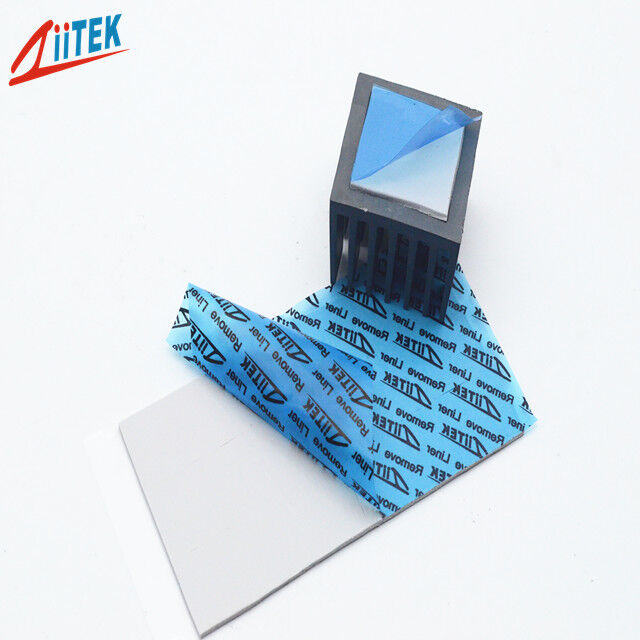

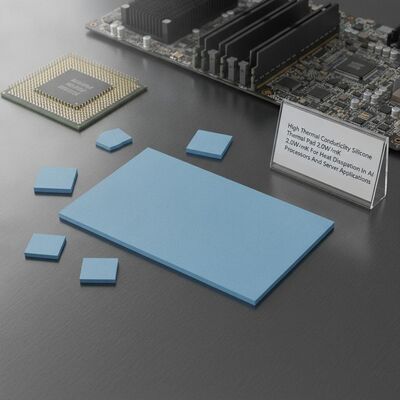

TIF®100-20-02U Series is an ultra-soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress. This product combines high thermal conductivity with an exceptionally gel-like softness, achieving a low-stress perfect fit. It is suitable for addressing issues in high-precision assemblies, such as large tolerances, uneven surfaces,and the susceptibility of delicate components to mechanical damage.
| Property | Value | Test Method |
|---|---|---|
| Color | Gray white | Visual |
| Construction | Ceramic filled silicone elastomer | ****** |
| Density (g/cm³) | 2.7 | ASTM D792 |
| Thickness Range (inch/mm) | 0.010~0.020 (0.25~0.50) 0.030~0.200 (0.75~5.00) |
ASTM D374 |
| Hardness (Shore 00) | 65 | 27 | ASTM 2240 |
| Continuous Use Temp | -40 to 200℃ | ****** |
| Breakdown Voltage (V/mm) | ≥5500 | ASTM D149 |
| Dielectric Constant @1MHz | 4.5 | ASTM D150 |
| Volume Resistivity | ＞1.0×10¹² Ohm-meter | ASTM D257 |
| Thermal Conductivity (W/m-K) | 2.0 | ASTM D5470 ISO22007 |
| Fire rating | V-0 | UL 94 (E331100) |
Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"×16" (406 mm×406 mm)
Component Codes:
Reinforcement Fabric: FG (Fiberglass)
Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening)
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive)
The TIF® series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.
