| 원래 장소: | 중국 |
| 브랜드 이름: | Ziitek |
| 인증: | UL |
| 모델 번호: | TIF100L 3040-06 |
| 문서: | TIF100L 3040-06_Data Sheet.pdf |
| 최소 주문 수량: | 1000 PC |
|---|---|
| 가격: | 0.1-10 USD/PCS |
| 포장 세부 사항: | 24*13*12cm 판지 |
| 배달 시간: | 3-8 근무일 |
| 지불 조건: | 티/티 |
| 공급 능력: | 100000pcs/월 |
| 제품명: | 전자 장치의 열 관리를 위한 뛰어난 탄성과 낮은 휘발성을 갖춘 열 갭 필러 패드 | 두께: | 0.010 "(0.25mm) ~ 0.200"(5.0mm) |
|---|---|---|---|
| 건설: | 세라믹 충전 실리콘 엘라스토머 | 경도: | 65/40 해안 00 |
| 색상: | 하얀색 | 전도성 있는 열식: | 3.0 마크로 |
| 밀도: | 30.0g/cm3 | 키워드: | 열 위성 방송 중계기 패드 |
| 애플리케이션: | 전자 장치의 열 관리 |
Ziitek is a high-tech enterprise dedicated to the research, development, manufacturing, and sales of thermal interface materials (TIMs). With extensive experience in this field, we provide the latest, most effective thermal management solutions. Our facility features advanced production equipment, comprehensive testing capabilities, and fully automatic coating production lines for manufacturing high-performance thermal silicone pads, thermal graphite sheets/films, thermal double-sided tape, thermal insulation pads, thermal ceramic pads, phase change materials, and thermal grease. All products comply with UL94 V-0, SGS, and ROHS standards.

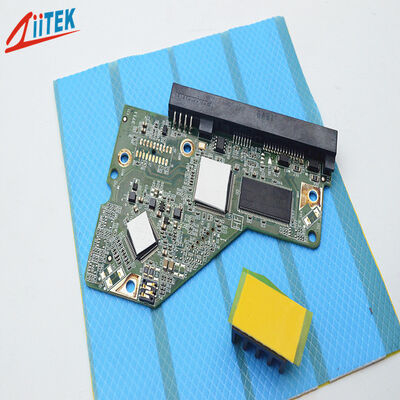

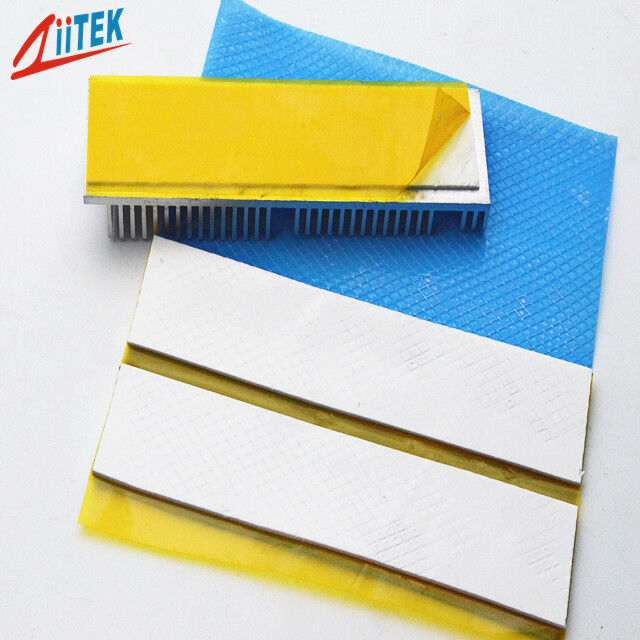

The TIF®100L 3040-06 Series is an ultra-low silicon oxygen volatilization thermal pad specifically designed for thermal management in optical and high-precision electronic devices. This material balances efficient thermal conductivity with extremely low precipitation of condensable volatile substances, effectively preventing contamination of sensitive optical components and precision circuits. The material features excellent flexibility and elasticity, enabling complete filling of micro gaps between heating interfaces and heat dissipation structures, significantly reducing contact thermal resistance, improving thermal conductivity efficiency, and ensuring reliability and extended service life of electronic components during long-term operation.
| Property | Value | Test Method |
|---|---|---|
| Color | White | Visual |
| Construction | Ceramic filled silicone elastomer | ****** |
| Density (g/cm³) | 3.0 | ASTM D792 |
| Thickness Range (inch/mm) | 0.010~0.020 | 0.030~0.200 0.25~0.50 | 0.75~5.00 |
ASTM D374 |
| Hardness (Shore 00) | 65 | 40 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | ****** |
| Breakdown Voltage (V/mm) | ≥5500 | ASTM D149 |
| Volume Resistivity (Ohm-meter) | ＞1.0×10¹² | ASTM D257 |
| Flame rating | V-0 | UL 94 (E331100) |
| Thermal conductivity (W/m-K) | 3.0 | ASTM D5470 ISO22007 |
Standard Thickness: 0.010" (0.25 mm)～0.200" (5.00 mm), with increments of 0.010" (0.25 mm)
Standard Size: 16"×16" (406 mm×406 mm)
The TIF® series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.
Q: How do I place an order?
A:
A: We are a manufacturer in China.
A: Generally 3-7 work days if goods are in stock, or 7-10 work days if goods are not in stock, depending on quantity.
A: Yes, we offer samples free of charge.
