| 원래 장소: | 중국 |
| 브랜드 이름: | Ziitek |
| 인증: | UL |
| 모델 번호: | TIF100-30-11U 열 패드 |
| 최소 주문 수량: | 1000 PC |
|---|---|
| 가격: | 0.1-10 USD/PCS |
| 포장 세부 사항: | 24*13*12cm 판지 |
| 배달 시간: | 3-8 근무일 |
| 지불 조건: | 티/티 |
| 공급 능력: | 100000pcs/월 |
| 제품명: | AI 프로세서 AI 서버를 위한 탁월한 열 전도성을 갖춘 부드럽고 전기 절연 패드 | 경도: | 65/27 쇼어00 |
|---|---|---|---|
| 키워드: | 전기 절연 패드 | 색상: | 다크 그레이 |
| 건설: | 세라믹이 채워진 실리콘 소재 | 전도성 있는 열식: | 3.0W/mK |
| 애플리케이션: | AI 프로세서 AI 서버 | 두께 범위: | 0.010 "(0.25mm) ~ 0.200"(5.0mm) |

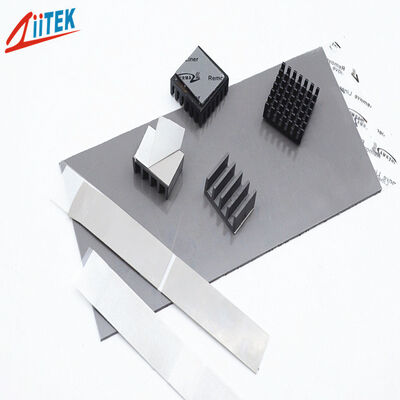

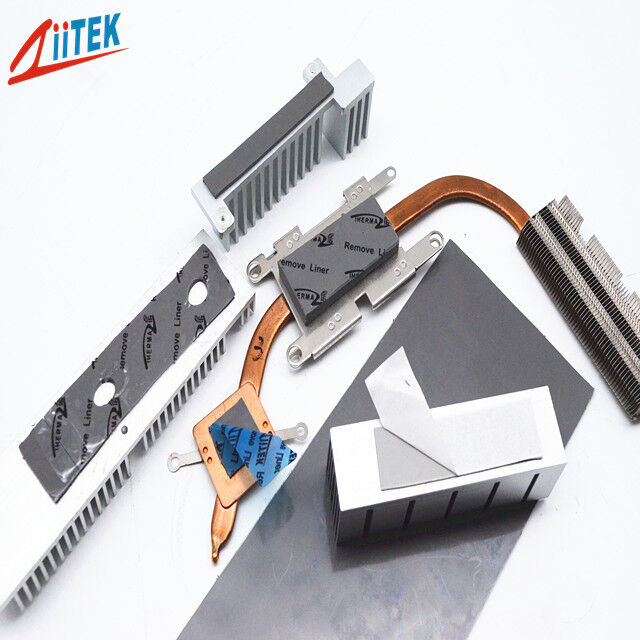

Soft And Electrically Insulating Pad With Exceptional Thermal Conductivity For AI Processors AI Servers
Company Profile
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
Features:
> Good thermal conductive: 3.0 W/mK
> Available in varies thicknesses
> Broad range of hardnesses available
> Outstanding thermal performance
> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized
Applications:
> Photovoltaic
> Signal communication
> New energy vehicle
> Motherboard chip
> Radiator
> AI Processors AI Servers
> Computer / communication equipment.
> Laptop / tablet / PC server.
> New energy power battery / vehicle equipment.
> Switching power supply / UPS.
> Video / security equipment.
> Any heating element and radiator.
| Typical Properties of TIF®100-30-11U Series | |||
| Property | Value | Test method | |
| Color | Dark Gray | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 3.0 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.010~0.020 | 0.030~0.200 | ASTM D374 |
| (0.25~0.50) | (0.75~5.00) | ||
| Hardness | 65 Shore 00 | 27 Shore 00 | ASTM 2240 |
| Continuos Use Temp | -40 to 200℃ | *** | |
| Breakdown Voltage(V/mm) | ≥ 5500 | ASTM D149 | |
| Dielectric Constant | 7.0 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Thermal Conductivity (W/m-K) | 3.0 | ASTM D5470 | |
| 3.0 | ISO22007 | ||
| Fire rating | V-0 | UL 94 (E331100) | |
Quality :
Do it right the first time, total quality control
Effectiveness:
Work precisely and thoroughly for effectiveness
Service:
Quick response, On time delivery and Excellent service
Team work:
Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.
FAQ
Q: How do I place an order?
A:1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and message to us.
This message should include any questions you might have about the products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the process and send your message to us
4. We will reply you as soon as possible with Email or online
Q: How do I request customized samples?
A: To request samples, you can leave us message on website, or just contact us by send email or call us.
Q: What's the thermal conductivity test method given on the data sheet ?
A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.
