| 원래 장소: | 중국 |
| 브랜드 이름: | Ziitek |
| 인증: | UL |
| 모델 번호: | TIF100-60-62US |
| 최소 주문 수량: | 1000 PC |
|---|---|
| 가격: | 0.1-10 USD/PCS |
| 포장 세부 사항: | 24*13*12cm 판지 |
| 배달 시간: | 3-8 근무일 |
| 지불 조건: | 티/티 |
| 공급 능력: | 100000pcs/월 |
| 제품명: | AI 프로세서 AI 서버용 열 관리 6.0W 열 갭 패드 | 두께 범위: | 0.010 "(0.25mm) ~ 0.200"(5.0mm) |
|---|---|---|---|
| 경도: | 65/20 해안00 | 키워드: | 열 간격 패드 |
| 색상: | 회색 | 건설: | 세라믹 충전 실리콘 엘라스토머 |
| 전도성 있는 열식: | 6.0W/mK | 애플리케이션: | AI 프로세서 AI 서버 |

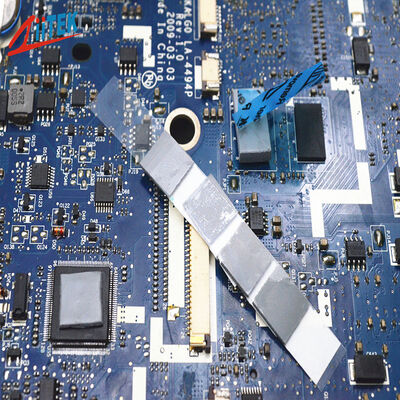

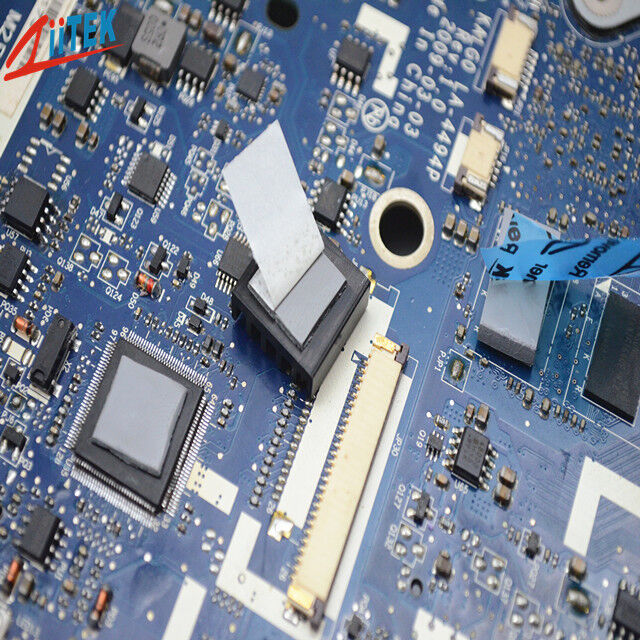

Thermal Management 6.0W Thermal Gap Pads For AI Processors AI Servers
Company Profile
With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.
Features:
> Good thermal conductive: 6.0 W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses
Applications:
Electronic Components – 5G, Aerospace, AI, AIoT, AR/VR/MR/XR, Automotive, Consumer Devices, Datacom, Electric Vehicle, Electronic Products, Energy Storage, Industrial, Lighting Equipment, Medical, Netcom, Panel, Power Electronics, Robotics, Servers, Smart Home, Telecom, etc.
| Typical Properties of TIF®100-60-62US Series | |||
| Property | Value | Test method | |
| Color | Gray | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 3.4 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.010~0.020 | 0.030~0.200 | ASTM D374 |
| (0.25~0.50) | (0.75~5.00) | ||
| Hardness | 65 Shore 00 | 20 Shore 00 | ASTM 2240 |
| Continuos Use Temp | -40 to 200℃ | *** | |
| Breakdown Voltage(V/mm) | ≥ 5500 | ASTM D149 | |
| Dielectric Constant | 7.0 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Thermal Conductivity (W/m-K) | 6.0 | ASTM D5470 | |
| 6.0 | ISO22007 | ||
| Fire rating | V-0 | UL 94 (E331100) | |
Independent R&D team
Q: How do I place an order?
A:1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and message to us.
This message should include any questions you might have about the products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the process and send your message to us.
4. We will reply you as soon as possible with Email or online.
FAQ
Q: How do I place an order?
A:1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and message to us.
This message should include any questions you might have about the products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the process and send your message to us
4. We will reply you as soon as possible with Email or online
Q: Do you accept custom orders ?
A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .
Q: How much are the pads?
A: Price is depended on your size, thickness, quantity, and other requirements, such as adhesive and others. Please let us know these factors first so that we could give you an exact price.
