| 원래 장소: | 중국 |
| 브랜드 이름: | Ziitek |
| 인증: | UL & RoHS |
| 모델 번호: | TIF100-18-56U |
| 문서: | TIF100-18-56U_Data Sheet.pdf |
| 최소 주문 수량: | 1000PCS |
|---|---|
| 가격: | 0.1-10 USD/PCS |
| 포장 세부 사항: | 24*13*12 상자 |
| 배달 시간: | 3-5 영업일 |
| 지불 조건: | 티/티 |
| 공급 능력: | 10000000 PCS/월 |
| 제품명: | 무인 항공기 Uav용 녹색 1.8W/mK 열 갭 필러 | 경도: | 65/27 쇼어 00 |
|---|---|---|---|
| 열전도율: | 1.8W/m-K | 견본: | 샘플 무료 |
| 두께: | 0.010"(0.25)~0.200"(5.0mm) | 비중: | 2.2g/cm3 |
| 애플리케이션: | 전기 자동차 배터리 | 절연 파괴 전압: | ≥5000 VAC |
| 색상: | 녹색 | 키워드: | 열 갭 필러 |

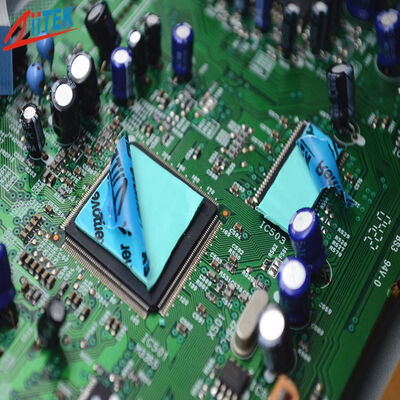

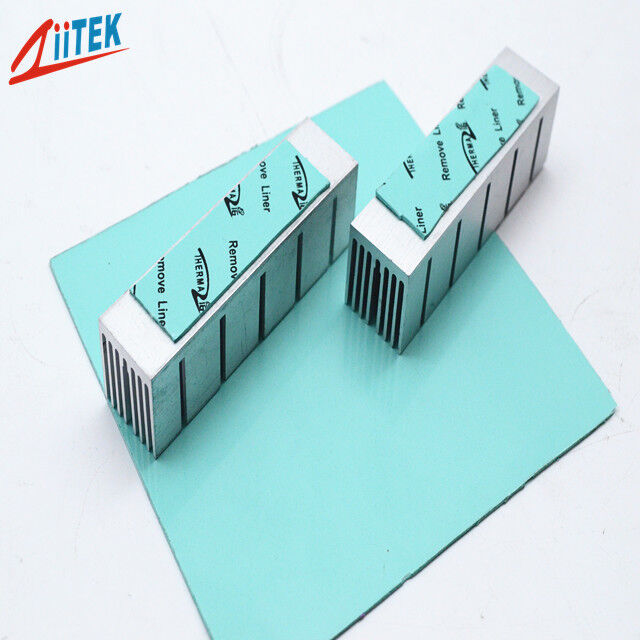

Green 1.8W/mK Thermal Gap Filler For Unmanned Aerial Vehicle Uav
Products description
The TIF®100-18-56U Series is an ultra-soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress. This product combines high thermal conductivity with an exceptionally gel-like softness, achieving a low-stress perfect fit. It is suitable for addressing issues in high-precision assemblies, such as large tolerances, uneven surfaces, and the susceptibility of delicate components to mechanical damage.
Features
> Good thermal conductive: 1.8W/mK
> Ultra-soft and highly conformable
> Self-adhesive without the need for additional surface adhesive
> Good insulation performance
> RoHS compliant
> UL recognized
Applications
> Auditioning electronic products
> unmanned aerial vehicle(UAV)
> Photovoltaic
> Signal communication
> New energy vehicle
> Motherboard chip
> Radiator
> AI Processors AI Server
| Typical Properties of TIF®100-18-56U Series | |||
| Property | Value | Test method | |
| Color | Green | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 2.2 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.010~0.020 | 0.030~0.200 | ASTM D374 |
| (0.25~0.50) | (0.75~5.00) | ||
| Hardness | 65 Shore 00 | 27 Shore 00 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant | 4.5 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity | 1.8 W/m-K | ASTM D5470 | |
| 1.8 W/m-K | ISO22007 | ||
Products specification
Standard Thickness: 0.010"(0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm).
Standard Size: 16"×16" (406 mm X406 mm).
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF® series is available in custom shapes and various forms.For other
thicknesses or more information, please contact us.
