| 원래 장소: | 중국 |
| 브랜드 이름: | Ziitek |
| 인증: | UL & RoHS |
| 모델 번호: | TIF100-10F 시리즈 |
| 문서: | TIF100-10F_Data Sheet.pdf |
| 최소 주문 수량: | 1000PCS |
|---|---|
| 가격: | 0.1-10 USD/PCS |
| 포장 세부 사항: | 24*13*12cm 판지 |
| 배달 시간: | 3-5 영업일 |
| 지불 조건: | 티/티 |
| 공급 능력: | 10000000 PCS/월 |

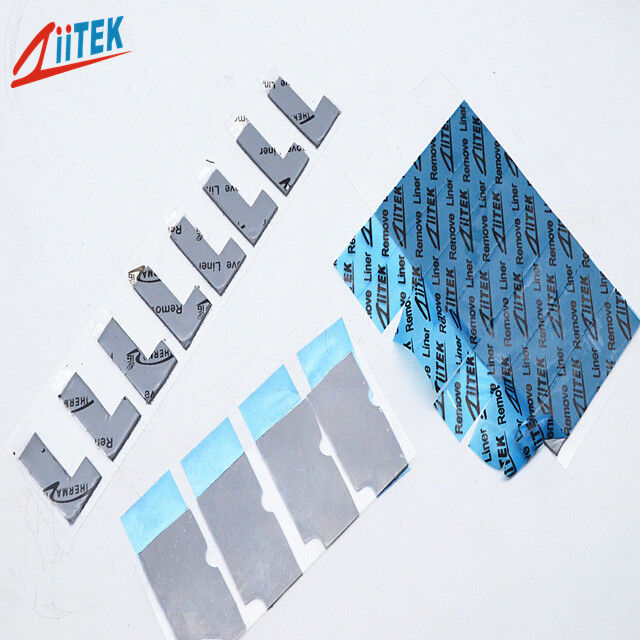

| 제품명: | 전자 냉각 시스템에서 1.5W/mK 열 전도도를 제공하는 우수한 부드러움 열 전도성 패드 | 키워드: | 열전도성 패드 |
|---|---|---|---|
| 생각 범위: | 0.010 "(0.25mm) ~ 0.200"(5.0mm) | 견본: | 샘플 사용 가능 |
| 플램 등급: | 94 V0 | 경도: | 65/60 해안 00 |
| 열전도율: | 1.5W/MK | 색상: | 회색 |
| 인증: | RoHS and UL recognized |

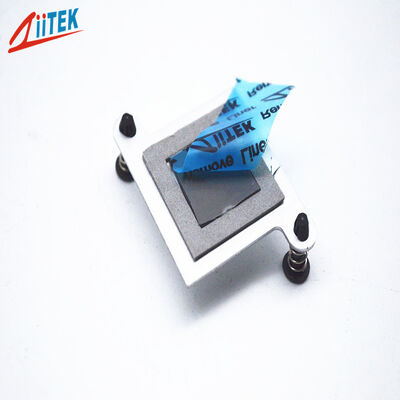

TIF®100-10F Series is a structurally supportive thermal pad designed to provide good heat dissipation while also ensuring structural support and durability. It can reliably fill interface gaps, transfer heat, and offer mechanical support for stacked components, resisting compressive deformation. This product is an ideal choice for applications that require a balance between heat dissipation, insulation, and mechanical stability.
| Property | Value | Test Method |
|---|---|---|
| Color | Gray | Visual |
| Construction & Composition | Ceramic filled silicone elastomer | - |
| Density (g/cm³) | 2.1 | ASTM D792 |
| Thickness Range | 0.010"~0.020" | 0.030"~0.200" 0.25~0.50mm | 0.75~5.0mm |
ASTM D374 |
| Hardness (Shore 00) | 65 | 60 | ASTM 2240 |
| Operating Temperature | -40 to 200℃ | - |
| Breakdown Voltage (V/mm) | ≥5500 | ASTM D149 |
| Dielectric Constant @ 1MHz | 4.5 | ASTM D150 |
| Volume Resistivity | ＞1.0×10¹² Ohm-meter | ASTM D257 |
| Flame Rating | V-0 | UL 94 (E331100) |
| Thermal Conductivity | 1.5 W/m-K | ASTM D5470 / ISO22007 |
Product Thicknesses: 0.010"(0.25mm)~ 0.200" (5.00mm) with increments of 0.010 (0.25mm).
Product Sizes: 16" x 16" (406mm x 406mm)
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
Packaging: Protected with PET film or foam, paper card separation between layers, export carton packaging, customizable to customer requirements.
Lead Time: For quantities of 5000 pieces, delivery time is negotiable.
We are a manufacturer based in China.
Yes, we welcome custom orders. We can customize dimensions, shapes, colors, and apply adhesive coatings or fiberglass reinforcement as required. Please provide drawings or detailed specifications.
Pricing depends on size, thickness, quantity, and specific requirements such as adhesive applications. Please provide these details for an exact quote.
• 12-hour online service with fast inquiry response
• Business hours: 8:00 AM - 5:30 PM, Monday to Saturday (UTC+8)
• Experienced English-speaking support staff
• Standard export packaging or customized marking
• Free samples available
• Comprehensive after-sales support and problem resolution
