| Place of Origin: | China |
| 브랜드 이름: | Ziitek |
| 인증: | UL & RoHS |
| Model Number: | TIF740HQ Series |
| Minimum Order Quantity: | 1000pcs |
|---|---|
| 가격: | 0.1-10 USD/PCS |
| Packaging Details: | 24*13*12cm cartons |
| Delivery Time: | 3-5 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000000 pcs/month |
| Products name: | 8W/m-K 1.0mm Insulation gap filler silicone pad thermal conductive silicone pad for CPU GPU EV battery | 인증: | RoHS and UL recognized |
|---|---|---|---|
| Thinkness range: | 1.0mmT | Sample: | Sample Avaliable |
| Flam rating: | 94 V0 | Hardness: | 45±5 Shore 00 |
| Thermal Conductivity: | 8.0 W/mK | Color: | Gray |
| Keywords: | Thermal Pad | ||
| 강조하다: | 1.0mm CPU thermal pad,8W/mK GPU thermal pad,EV battery silicone thermal pad |
||

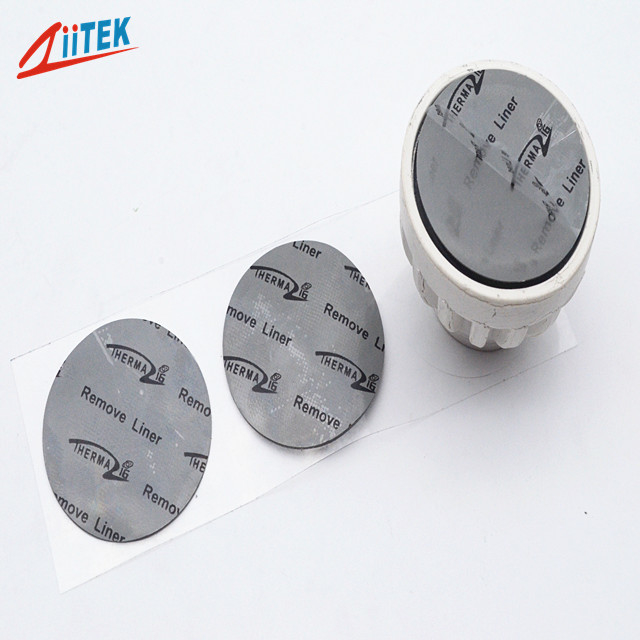

8W/m-K 1.0mm Insulation gap filler silicone pad thermal conductive silicone pad for CPU GPU EV battery
Company Profile
With professional R&D capabilities and many year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
TIF740HQ thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base.Their flexibility and elasticity make them suited to coat very uneven surfaces.Heat can transmit to the metal housing or dissipation plate from the heating elements or even the entire PCB, which effecitly enhances the efficiency and life-time of the heat-generating electronic components.
Features
> Good thermal conductive : 8.0W/mK
> Soft and Compressible for low stress applications
> High tack surface reduces contact resistance
> Easy release construction
> Electrically isolating
> High durability
Applications
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU
| Typical Properties of TIF740HQ Series | ||
| Color | Gray | Visual |
| Construction & Compostion | Ceramic filled silicone elastomer | ******* |
| Specific Gravity | 3.5g/cc | ASTM D297 |
| Thickness range | 1.0mm | ASTM C351 |
| Hardness (thickness ≥1.0mm) | 45±5 Shore 00 | ASTM 2240 |
| Hardness (thickness ＜1.0mm) | 55±5 Shore 00 | ASTM 2240 |
| Dielectric Breakdown Voltage | >5500 VAC | ASTM D412 |
| Operating Temp | -45 ~200℃ | ******* |
| Dielectric Constant | 5.0 MHz | ASTM D150 |
| Volume Resistivity | 1.0X10¹²Ohm-meter | ASTM D257 |
| Fire rating | 94 V0 | equivalent UL |
| Thermal conductivity | 8.0W/mK | ASTM D5470 |
Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes: 8" x 16"(203mm x406mm)
Individual die cut shapes and custom thickness can be supplied. Please contact us for confirming
Safe disposal method does not require special protection. The storage condition is low temperature and dry, away from open fire and away from direct sunlight. For detailed method, please refer to the product material safety data sheet.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge.
Our services
Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries in English of course.
Standard Export Carton Or Marked With Customer's Information Or Customized.
Provide free samples
After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory solution.
